Water Quality

Work on Ground Water Quality by PHED:

  • The drinking water supply in the state is primarily dependent upon the ground water.
  • The state government had conducted testing of 10% of government sources (45,000 sources) in the year 2002-2003 for 15 parameters except Arsenic.
  • Result revealed the existence of chemical contamination like Fluoride and Iron in the different part of the state.
  • Arsenic contamination in ground water was noticed in Simariya Ojhapatti village of Bhojpur district in October 2002.
  • After noticing of Arsenic presence in ground water in Simariya Ojhapatti, the department conducted testing of ground water in 10 km stretch bordering river Ganga and over 80000 water sources spreading over 65 blocks of 11 districts were tested for Arsenic.
  • The test results were positive and the ground water in 892 habitations were found to be contaminated with Arsenic > 50ppb (as per BIS standard 50ppb was permissible limit).
  • Similarly to find out the spread up of Fluoride in the six districts, 44355 existing government water sources of six districts were tested during 2005-2006.
  • After finding of chemical contamination in ground water, department had planned for comprehensive water testing of 2,70,318 water sources spread up in all districts of Bihar in year 2007-08.
Present Scenario of Quality Problems in Bihar:
Water Quality Affected Districts
13 Arsenic Prevalence Districts 11 Fluoride Prevalence Districts 9 Iron Prevalence Districts
Saran Kaimur Supaul
Vaishali Rohtas Araria
Samastipur Aurangabad Kishanganj
Darbhanga Gaya Saharsa
Buxar Nalanda Purnea
Bhojpur Shiekhpura Katihar
Patna Jamui Madhepura
Begusarai Banka Begusarai
Khagaria Munger Khagaria
Lakhisarai Bhagalpur
Munger Nawada
Bhagalpur
Katihar

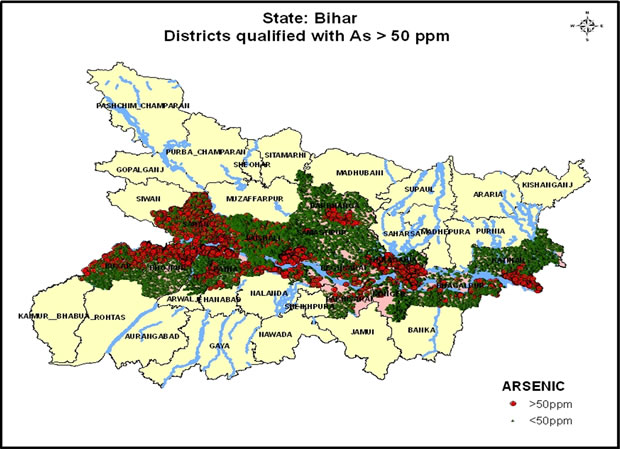

Arsenic Affected Districts:
SL District Name Total Blocks Total Affected Blocks Total Affected Habitations
1. Begusarai 18 4 84
2. Bhagalpur 16 4 159
3. Bhojpur 14 4 31
4. Buxar 11 4 385
5. Darbhanga 18 1 5
6. Katihar 16 5 26
7. Khagaria 7 4 246
8. Lakhisarai 7 3 204
9. Munger 9 4 118
10. Patna 23 4 65
11. Samastipur 20 4 154
12. Saran 20 4 37
13. Vaishali 16 5 76
Total 195 50 1,590

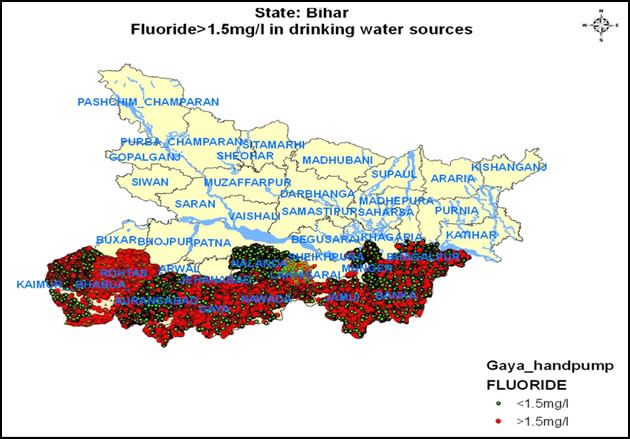

Fluoride Affected Districts:
SL District Name Total Blocks Total Affected Blocks Total Affected Habitations
1. Nalanda 20 20 213
2. Aurangabad 11 8 37
3. Bhagalpur 16 1 224
4. Nawada 14 5 108
5. Rohtas 19 6 106
6. Kaimur 11 11 81
7. Gaya 24 24 129
8. Munger 9 9 101
9. Banka 11 6 1,812
10. Jamui 10 10 1,153
11. Sheikhpura 6 6 193
Total 151 98 4,157

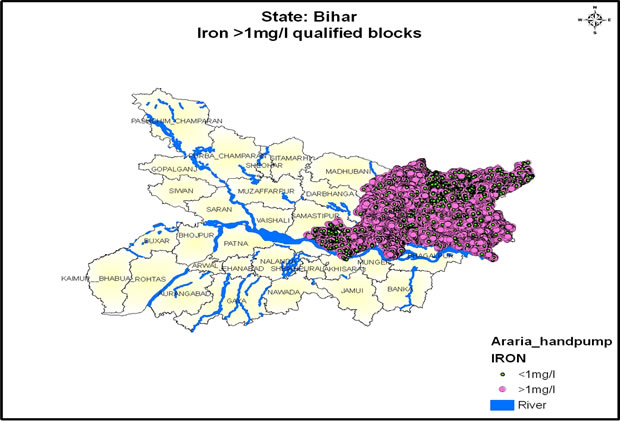

Iron Affected Districts:
SL District Name Total Blocks Total Affected Blocks Total Affected Habitations
1. Khagaria 7 3 417
2. Purnea 14 14 3,505
3. Katihar 16 16 766
4. Araria 9 9 2,069
5. Supaul 11 11 3,397
6. Kishanganj 7 7 1,593
7. Begusarai 18 18 2,206
8. Madhepura 13 13 2,445
9. Saharsa 10 10 2,275
Total 105 101 18,673
Health Implications:

Community Consultation

  • Identification of contaminated as well as safe water sources.
  • Mapping of Village specific GIS database.
  • Transparent information system among all stakeholders regarding-awareness and health education.
  • Providing alternate safe drinking water source.
  • Operation and maintenance of constructed treatment plant.
  • Selection of safe and economical technologies.

Steps and Intervention taken up:

  • Infected hand-pumps have been identified and put into hold for further usages.
  • Task force at state level constituted.
  • State and Districts laboratories are functional for testing and mapping of water sources.
  • Holistic approach has been adopted for mitigation activities in water quality affected areas.
  • Traditional water sources like dug wells are being converted into sanitary wells.
  • Rain water harvesting system and aquifer recharging systems are being constructed in quality problems areas.
  • Surface water based scheme planned.
  • Safest aquifers explored for Piped water supply.

Mitigation Measures in Arsenic/Fluoride/Iron affected Districts:

Software Mitigation activities

  • An awareness campaign has been organized in arsenic, fluoride and iron affected districts with the following targets.
  • Community in affected areas aware that arsenic and fluoride may be found in handpump water, and can cause serious illness.
  • Community in affected areas understand the meaning of a red and blue handpump spout.

IEC Materials

IEC tools developed for informing community volunteers, Frontline functionaries both belonging to Govt and NGO stream are the following: Hand outs, FAQs on Myths & realities, posters on Signs & symptoms for general awareness, Wall paintings and relevant training materials for the field staff.

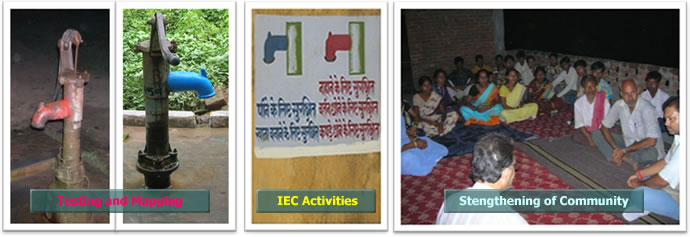

Critical Concerns and Key Challenges:

IEC Tools for Social Mobilization

Hardware Activities:

The mitigation options is taken up on the basis of availability of water sources and geological conditions of the districts are following:

Long-term Mitigation

Surface water Source:

  • Multi village piped water supply scheme by using conventional treatment plant for arsenic & fluoride affected area.

Ground water Source:

  • Piped water supply scheme from safest aquifer.
  • Solar based mini piped water supply scheme with treatment unit.

Short-term Mitigation

  • Handpump attachment treatment unit.
  • Sanitary dug well with IM3 handpump and with solar based pump.
  • Rainwater harvesting systems.

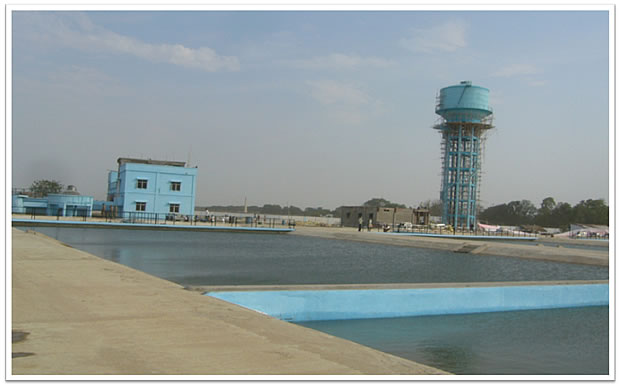

Multi-Village Piped Water Schemes:

Raw Water Source: Surface Water.

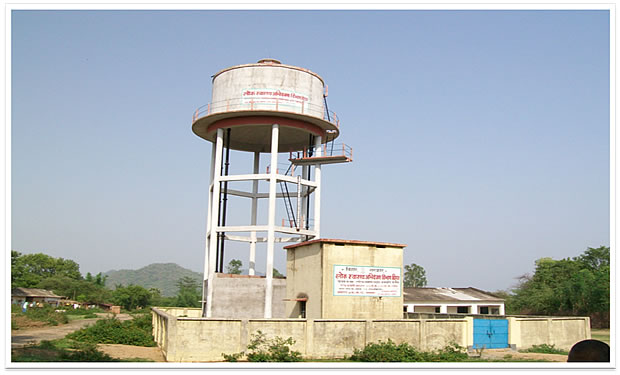

Piped water supply scheme from safe aquifer

District: Jamui, Hardia Piped Water Supply.

Construction and Renovation of Sanitary Dug-Well for Safe Water

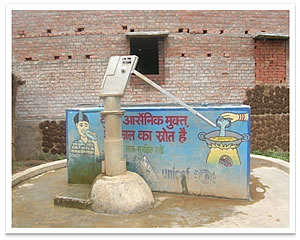

Sanitary dug wells with IM3

for catering arsenic free water

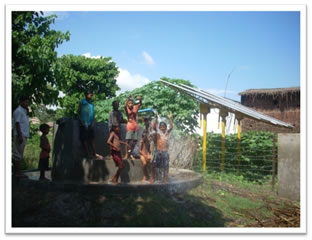

Sanitary dug wells

with solar based pump

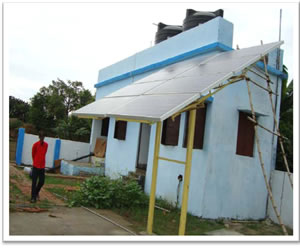

Solar based mini piped water supply scheme with Arsenic & Iron treatment unit

Premises of mini piped Water Supply Scheme Treatment Plant
